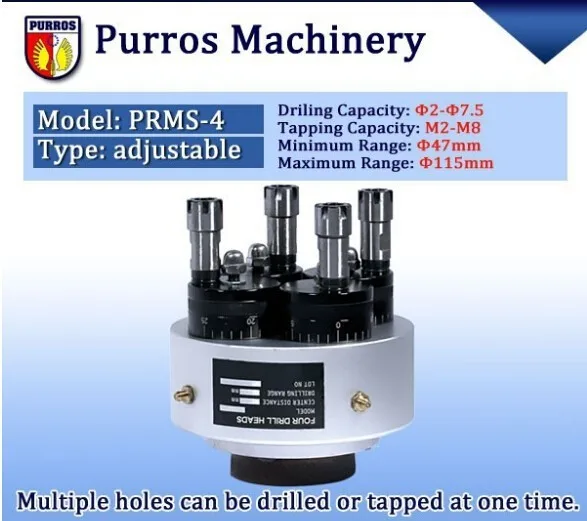

Quick Details

  • Place of Origin: Zhejiang, China
  • Brand Name: PURROS
  • Model Number: PRMS-447
  • Type: Adjustable
  • Spindle: 4
  • Tapping Capacity: M2-M8
  • Minimum Range: 47mm
  • Maximum Range: 115mm
  • Net weight: 8kg

Packaging & Delivery

Packaging Details 18cm x 16cm x 16cm (7.09in x 6.3in x 6.3in)
Port NINGBO/SHANGHAI/SHENZHENG
We are manufacture and suppliers of Multi Splindle Drill Head that are fabrictaed using high grade raw material acquired from the trustworthy sources.The design comprises of helical gears that ensure noiseless and smooth operations.Our range of heads is used in a situation in which multiple drilling head is required  on a compenent.





Parameters




Advantages & Features:

  • The Heads are designed to allow maximum efficiency, high production and low operating cost on a wide variety of jobs with quick delivery.
  • Designed suitable for most drill, tap or feed units
  • Compact housings are made of aluminum casting for light weight.
  • Different spindle configurations available
  • 1:1 speed ratios.
  • Properly heat treated quiet, efficient helical gears and spindles for long life and smooth operation.
  • Extremely precise tolerances on all rotating parts.
  • Spindle design suitable for high precision industry standard ER collect system
  • Micromatic scales for easy center distance adjustment
  • Rigid bearing housing & short overhang spindle design for rugged operation & continuous use
  • Can be mounted at any positio

Inquiry Inputs from customer to understand requirement clearly:
  • Material to be machined
  • Size of holes
  • Number of holes
  • Operation to be performed
  • Center distance between holes
  • Fixed center distance or adjustable Center distance
  • Drawing/sketch of Hole pattern
  • Spindle out put rpm
  • Motor HP of Machine on which head to be mounted



Connect Size






A: Spindle sleeve diameter
B: Spindle sleeve exposed length
C: Spindle rotating part exposed length
D: Spindle rotating part diameter
F: Connection type


Bench Machine Connect Size
