Quick Details

  • Place of Origin: Zhejiang, China
  • Brand Name: PURROS
  • Model Number: PR4P
  • Type: Air Drill
  • Average Air Consumption: 6-10L
  • Maximum Torque: 1800
  • No-Load Speed: 210-6100R/M
  • Max. Drilling diameter Aluminum: 19mm
  • Max. Drilling diameter Cast iron: 15.5mm
  • Max. Drilling diameter Steel: 13mm
  • Spindle stroke: 100mm/150mm
  • Cutting feed stroke: 40mm, 60mm, 80mm, 100mm, 130mm
  • Motor power: 0.75/1.1kw
  • Feed driving: 1800N
  • Weight: 28KG

Packaging & Delivery

Packaging Details 65x40x30cm
Port NINGBO/SHANGHAI/SHENZHENG

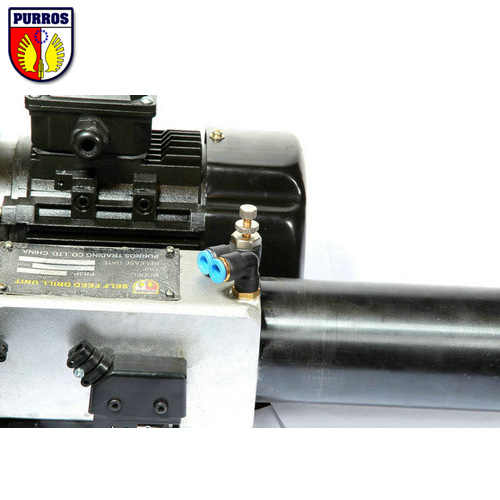

 PURROS® Self Feeding Drilling Unit Parameters



Mode: PR4P
No-load speed: 210-6100R/M
Drilling diameter: Aluminum: 5-19mm / Cast iron: 1.5-15.5mm / Steel: 1.5-13mm
Spindle stroke: 100mm/150mm
Cutting feed stroke: 40mm, 60mm, 80mm, 100mm, 130mm
Motor power: 0.75/1.1kw
Feed driving: 1800N
Air consumption: 6-10L

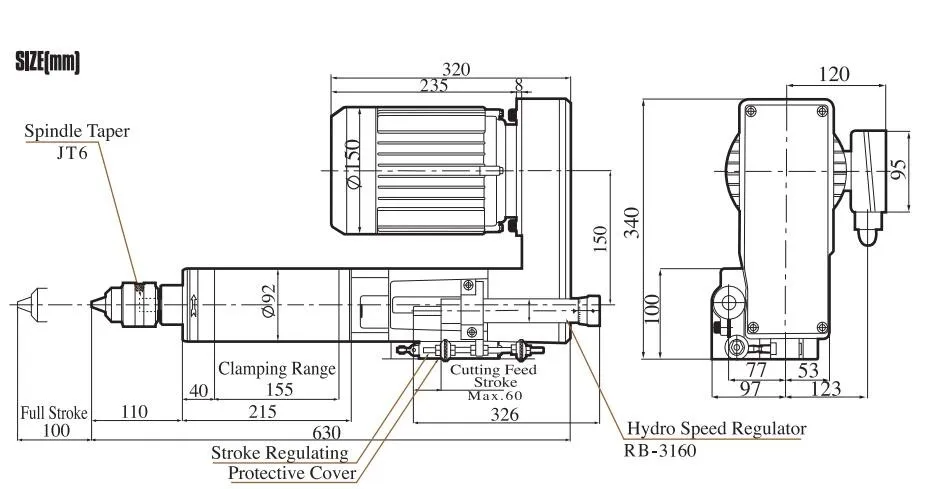

PURROS® Self Feeding Drilling Unit Size

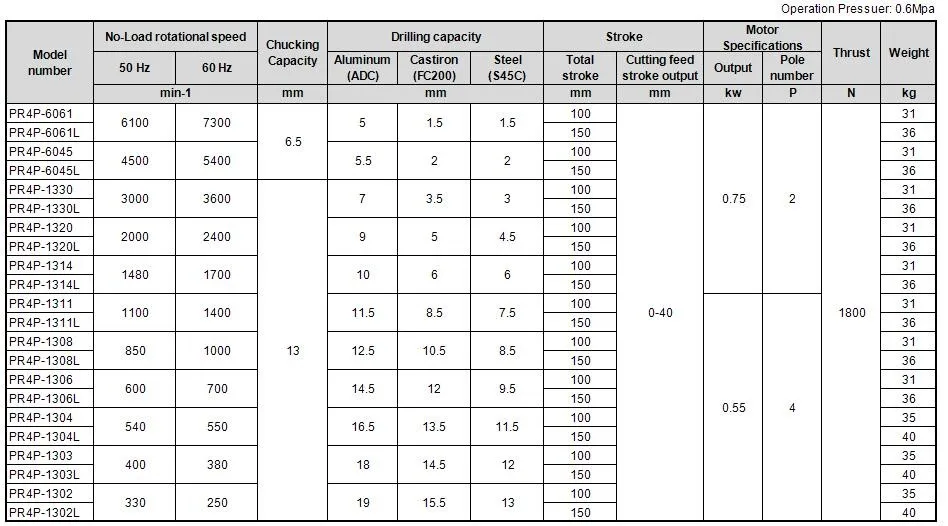

PURROS® Self Feeding Drilling Unit Specifications

1. High-precision
Core technology of Electro Pneumatic Drilling Units is played very well, which completely strengthened the versatility of the product and thus made the high precision of Drilling Units reflected extremely.

2. High rigidity
Axial rail structure is used, which greatly improved the overall rigidity and fully guaranteed the stability of the hole machining.

3. High performance
A unique dual sealing structure and round body that is easy and convenient to be installed are available at the end of spindle, which can meet variety of holes machining requirement.


Products can be equipped with Self Feeding Drilling Unit

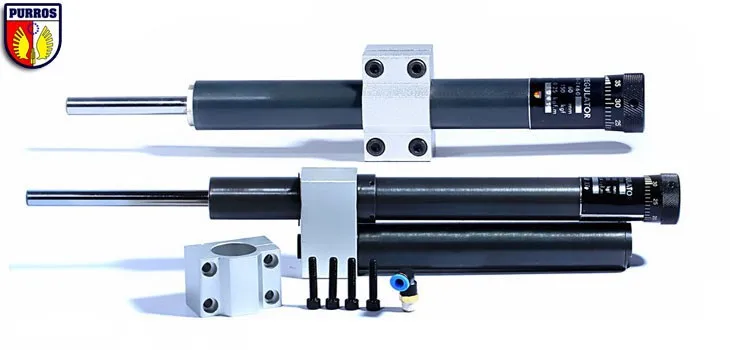

1. Hydraulic Damper (PURROS® Hydro Speed Regulator)
Speed can be adjusted arbitrarily from lower to higher by a hydraulic feeding speed control device.

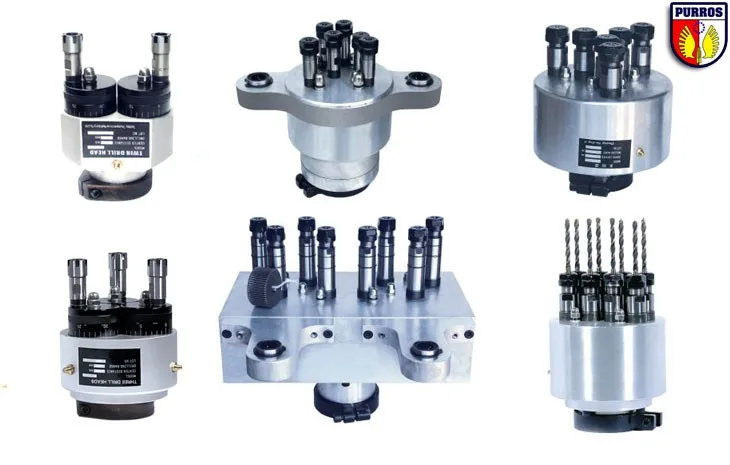

2. Multi-axis machining head (PURROS® Multiple Spindle Heads)
Multi-axis machining head can be amounted, which can achieve high efficiency drilling and meet different requirements of machining axes and axis spacing. Extensive multi-axis machining head sizes are available in PURROS®.

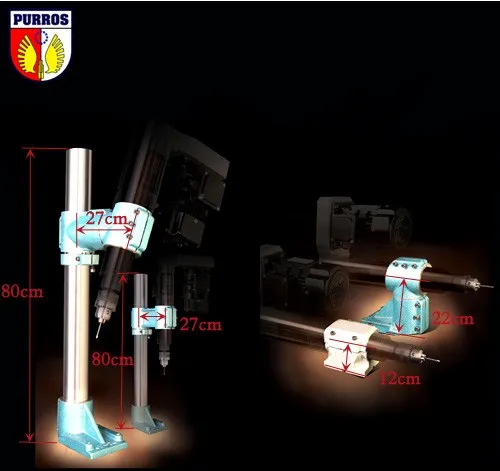

 3. Desktop support (PURROS® Universal Stand)
Such desktop support is suitable for any machining directions, which can fix the Drilling Units angle freely.

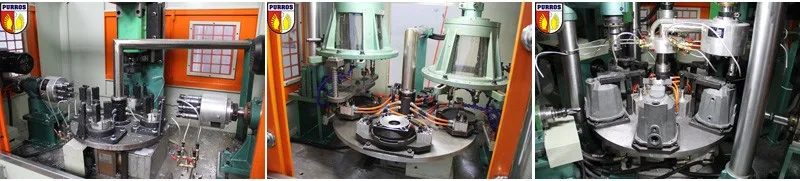

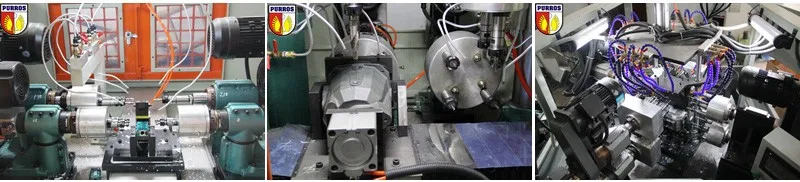

4. PURROS® Special Purpose Machine

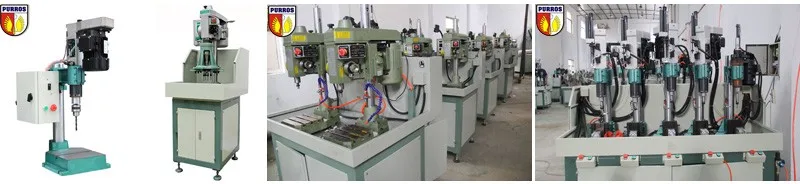

Multiple Drilling or Tapping Machine

Multi Station Drilling or Tapping Machine

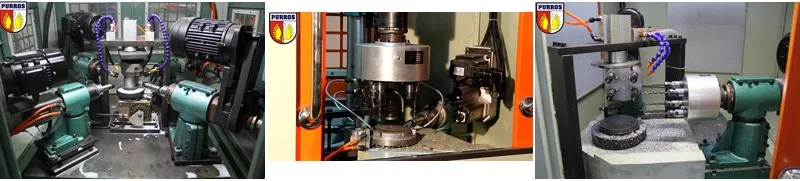

Rotary Index Drives Special Purpose Machine

Sliding Table Special Purpose Machine

Rotary Table Special Purpose Machine
