Quick Details

  • Type: Hydraulic Accumulators, Spring return
  • Model Number: RB
  • Brand Name: PURROS
  • Place of Origin: Zhejiang, China
  • Maximum Stroke: 15 - 120 mm
  • Load Range: 120 - 300 n
  • Withstand Impact Energy: 2.3 - 3.5 j
  • Maximum Thrust: 150 - 300 kgf
  • Maximum Impact Load: 0.25 - 0.4 kgf.m

Packaging & Delivery

Port NINGBO/SHANGHAI/SHENZHENG
Air return regulators serve the same function as the spring return type in that they control the forward speed of the drill. However, the air type requires an air signal at the end of each drilling cycle to return the regulator to its original position. Also, these regulators are required for peck feed drilling as they are capable of holding the drilling depth at the end of each peck feed motion.

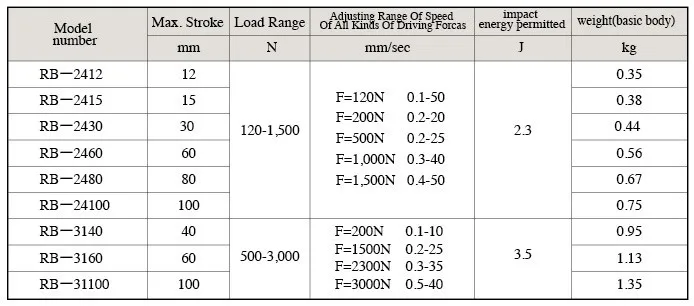

Parameters

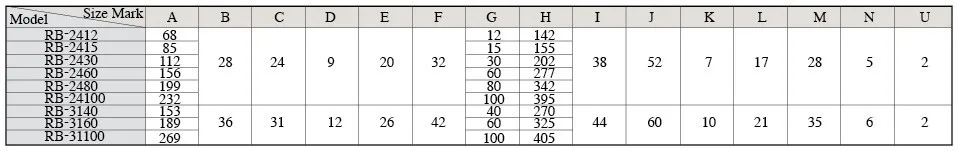

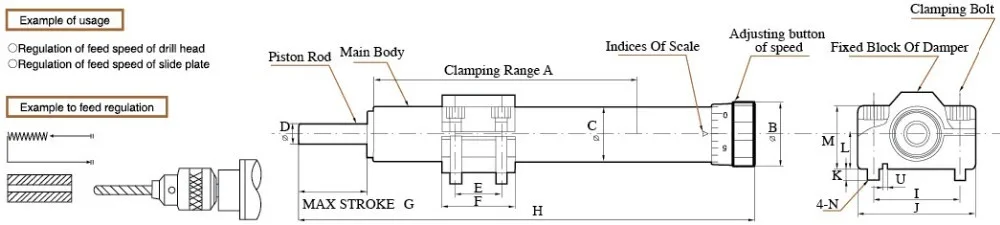

Size (mm)



Purros Machinery also have other models (Maximum Stroke:12-100mm, Load Range:120-3000n, Withstand Impact Energy:2.3-3.5j)

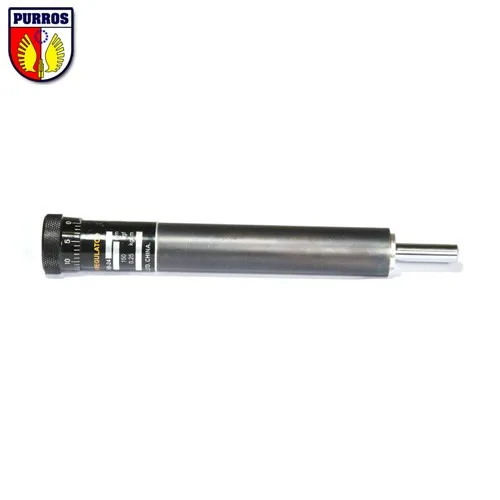

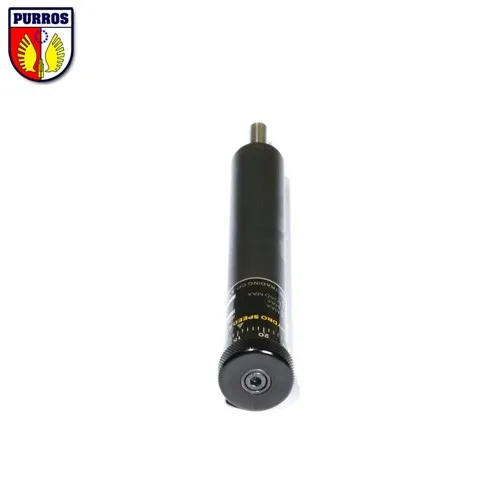

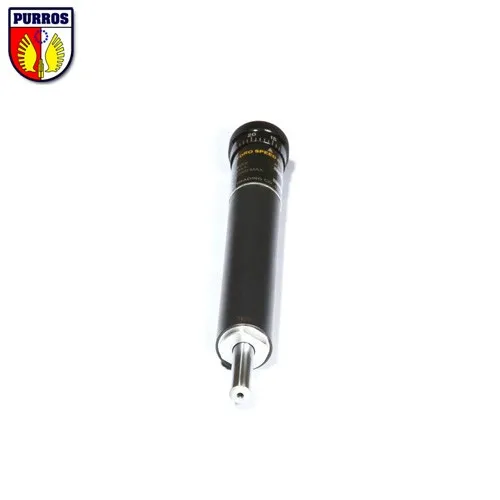

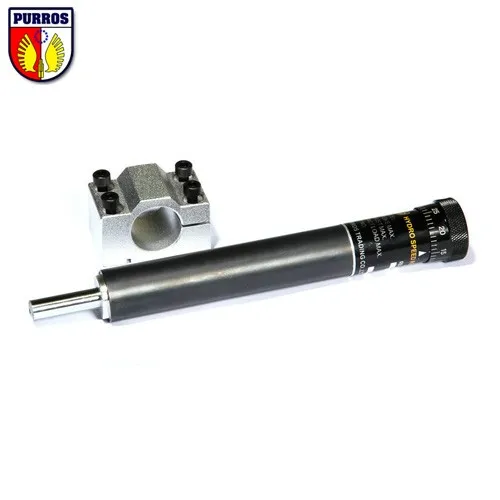

Purros Precision Hydro Speed Regulator is a kind of hydraulic type control device of feed speed that can adjust freely feed speed of air cylinder from low speed to high speed within the range of expectation. Ways of control includes spring return type; you can make a choice according to your requirements.

The piston rod will return to an original position autormatically when discharge the load of piston rod of hydraulic damper Model RB.

Features
1. Compact structure, direction of installation is free.
2. Adopt full-sealed structure that isn't required to fill with work oil; it can keep long-time and stable control function.
3. Quick load change only causes little change of control speed, it can get stable feed speed.
4. Feeding speed can be easily adjusted by speed control button.
